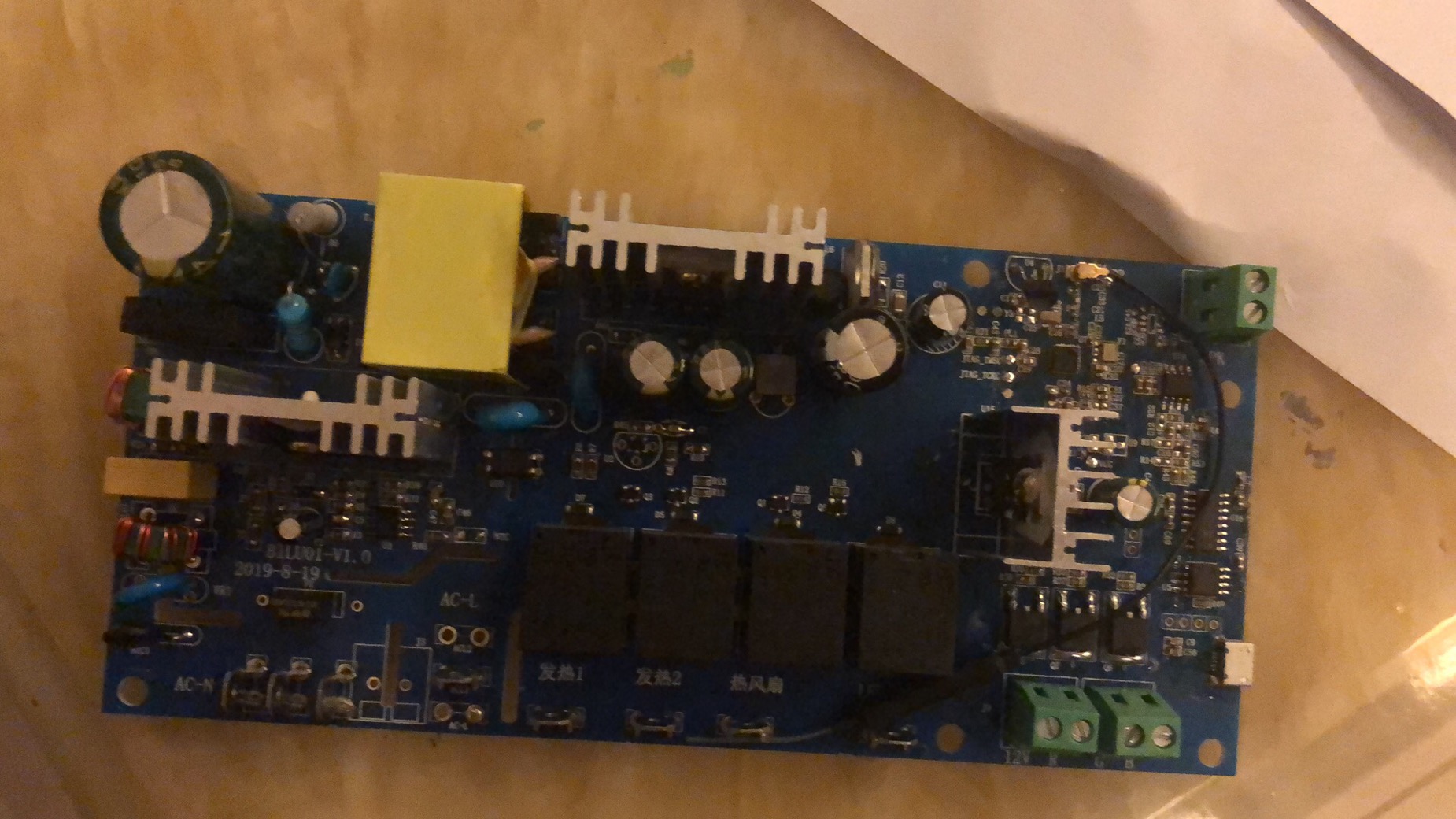

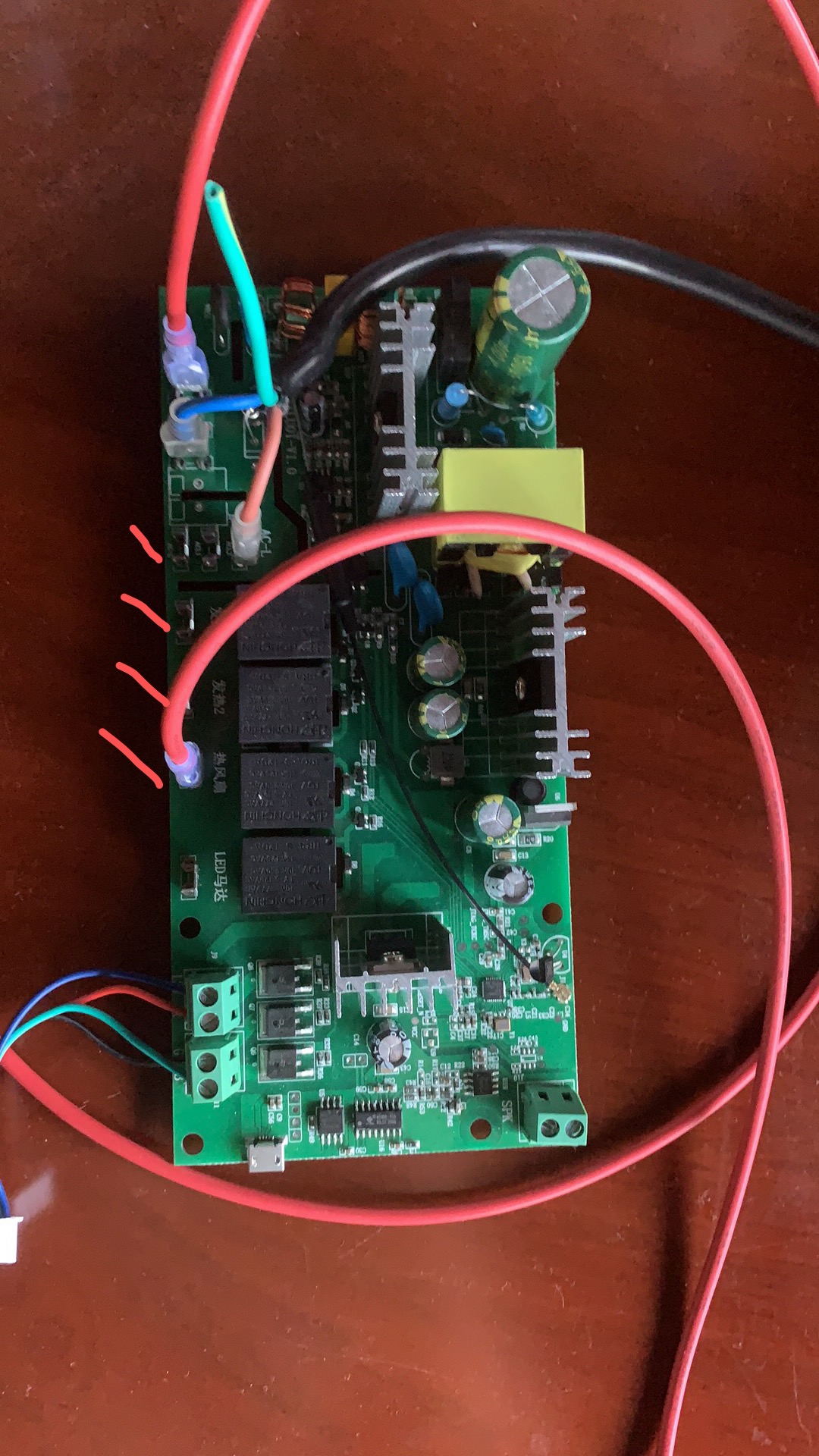

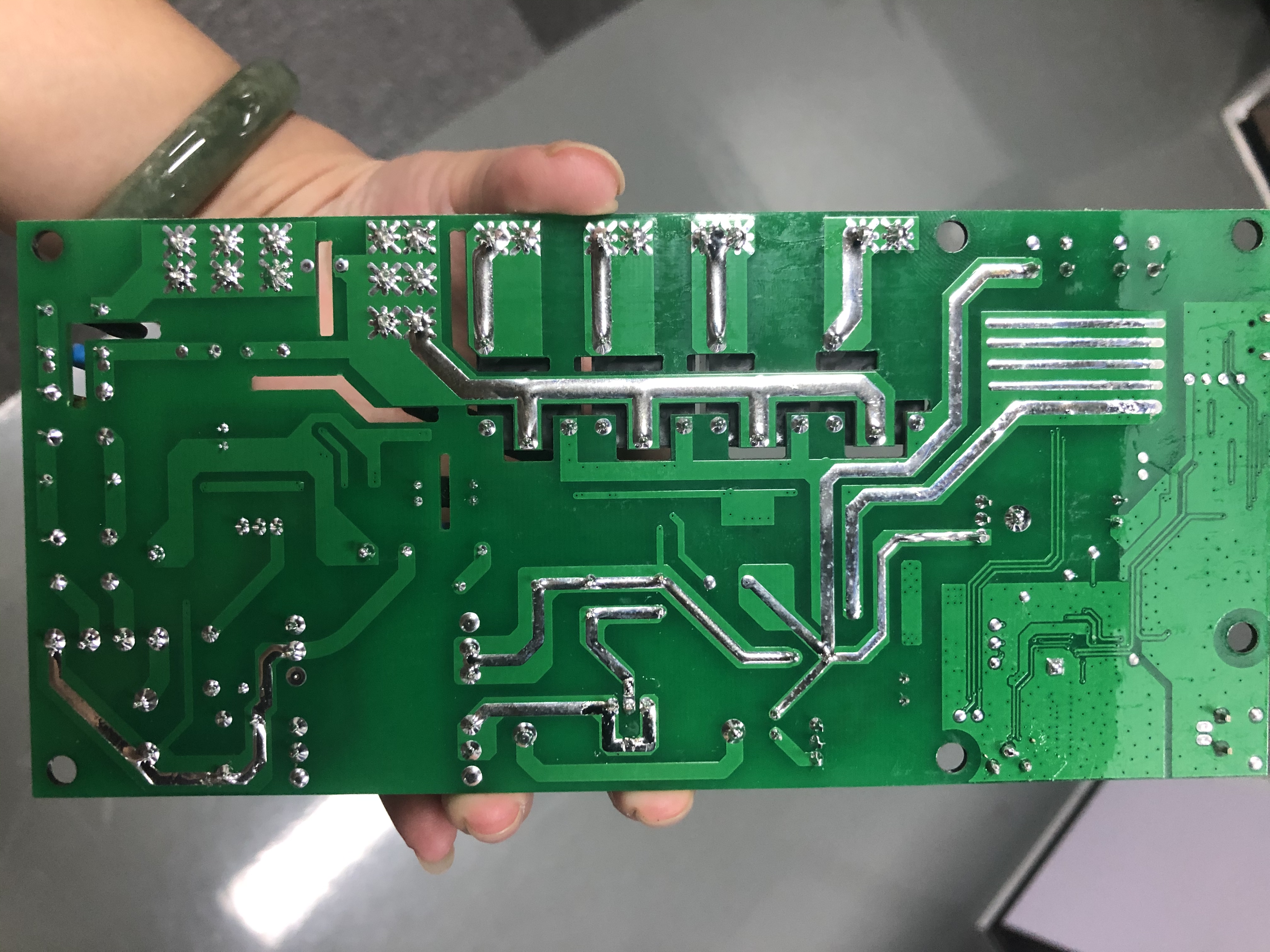

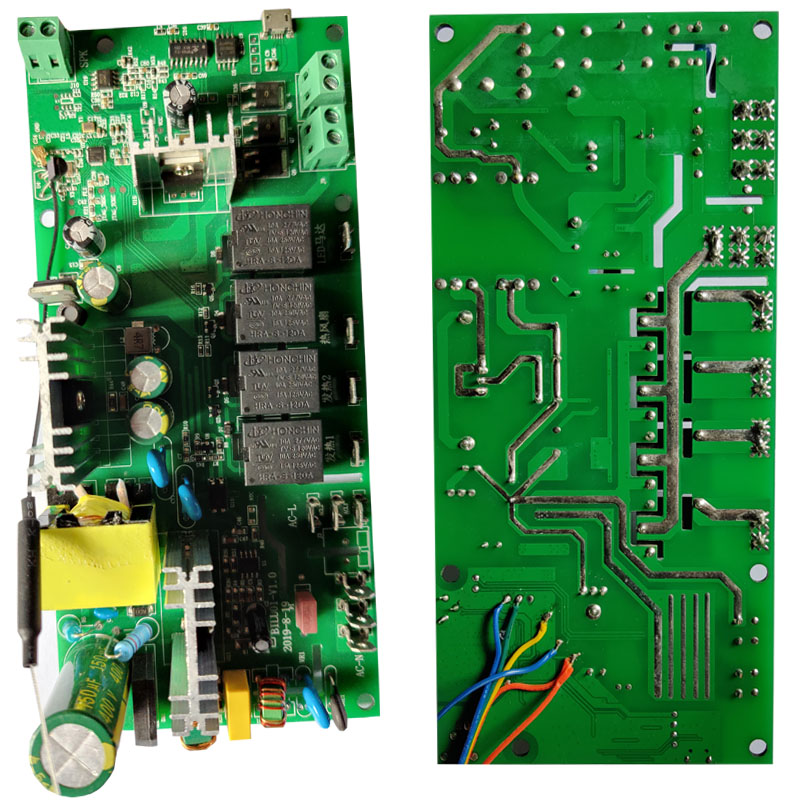

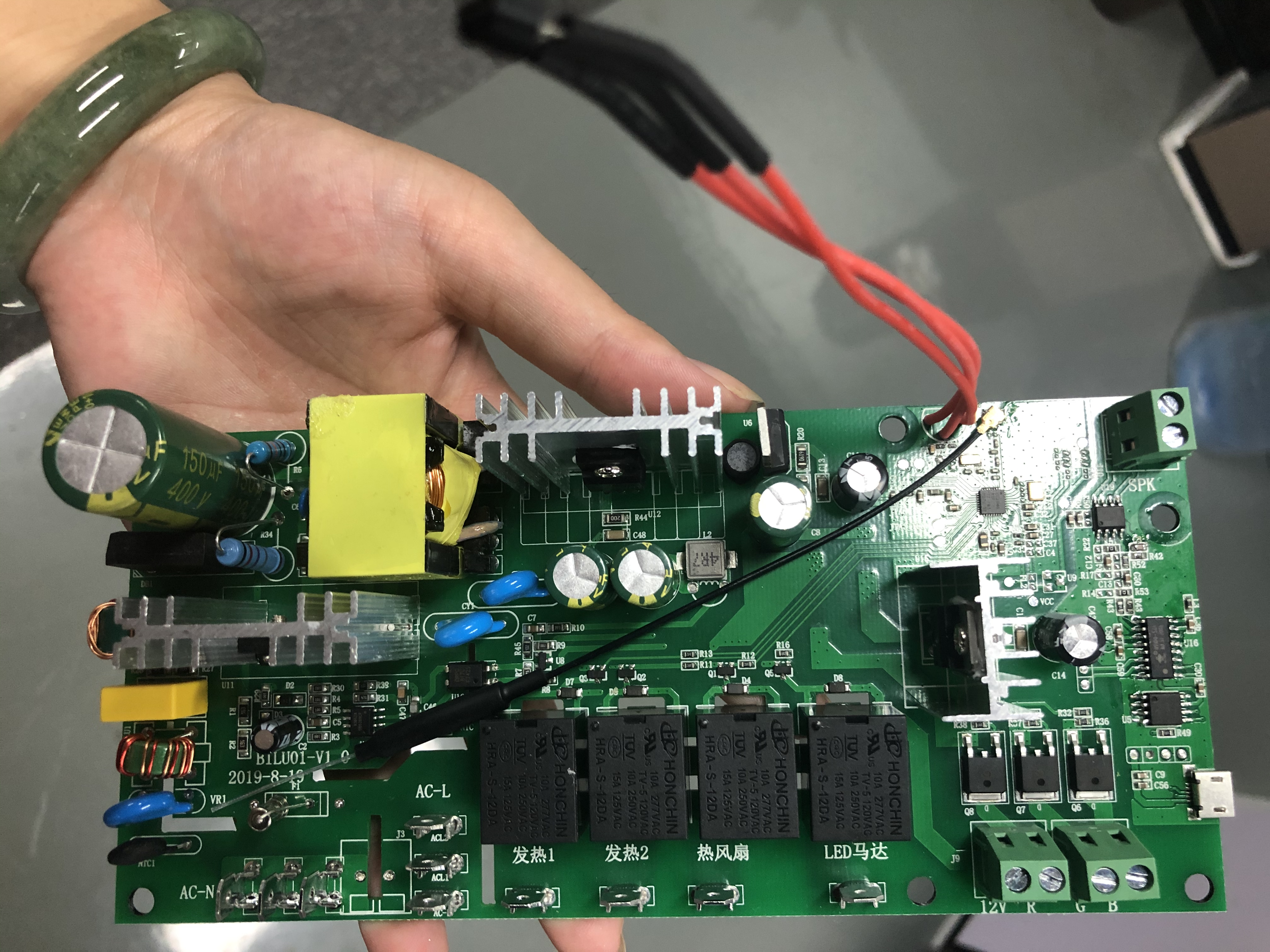

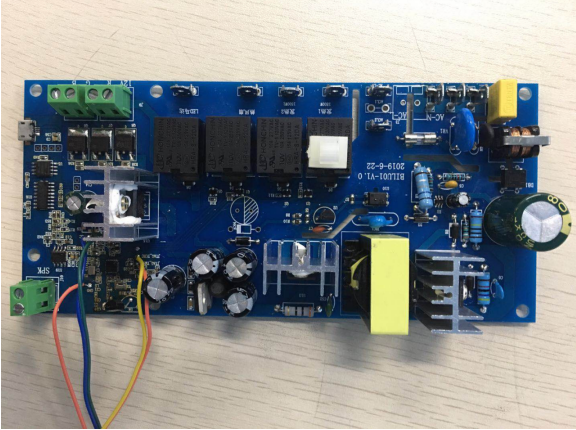

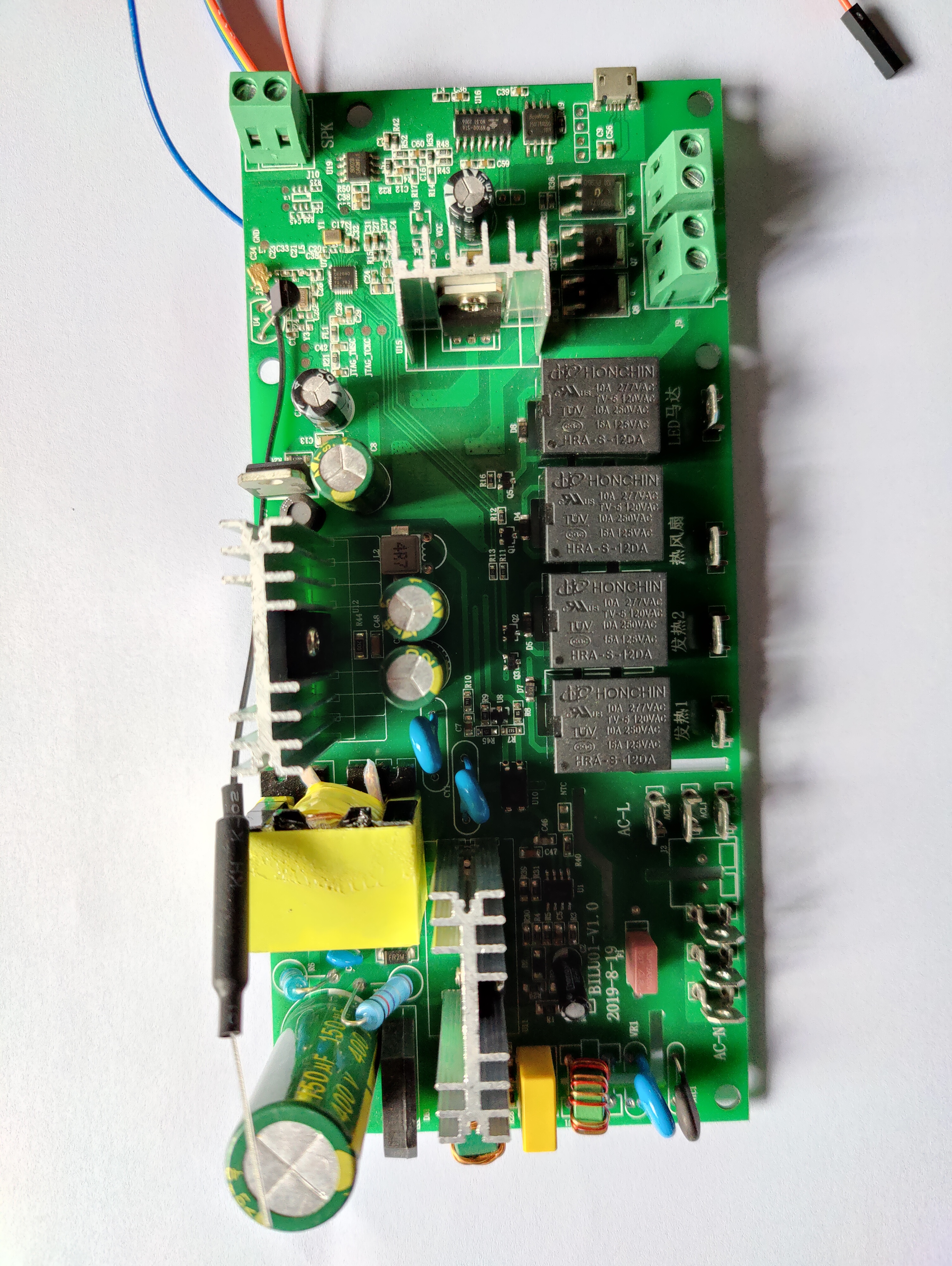

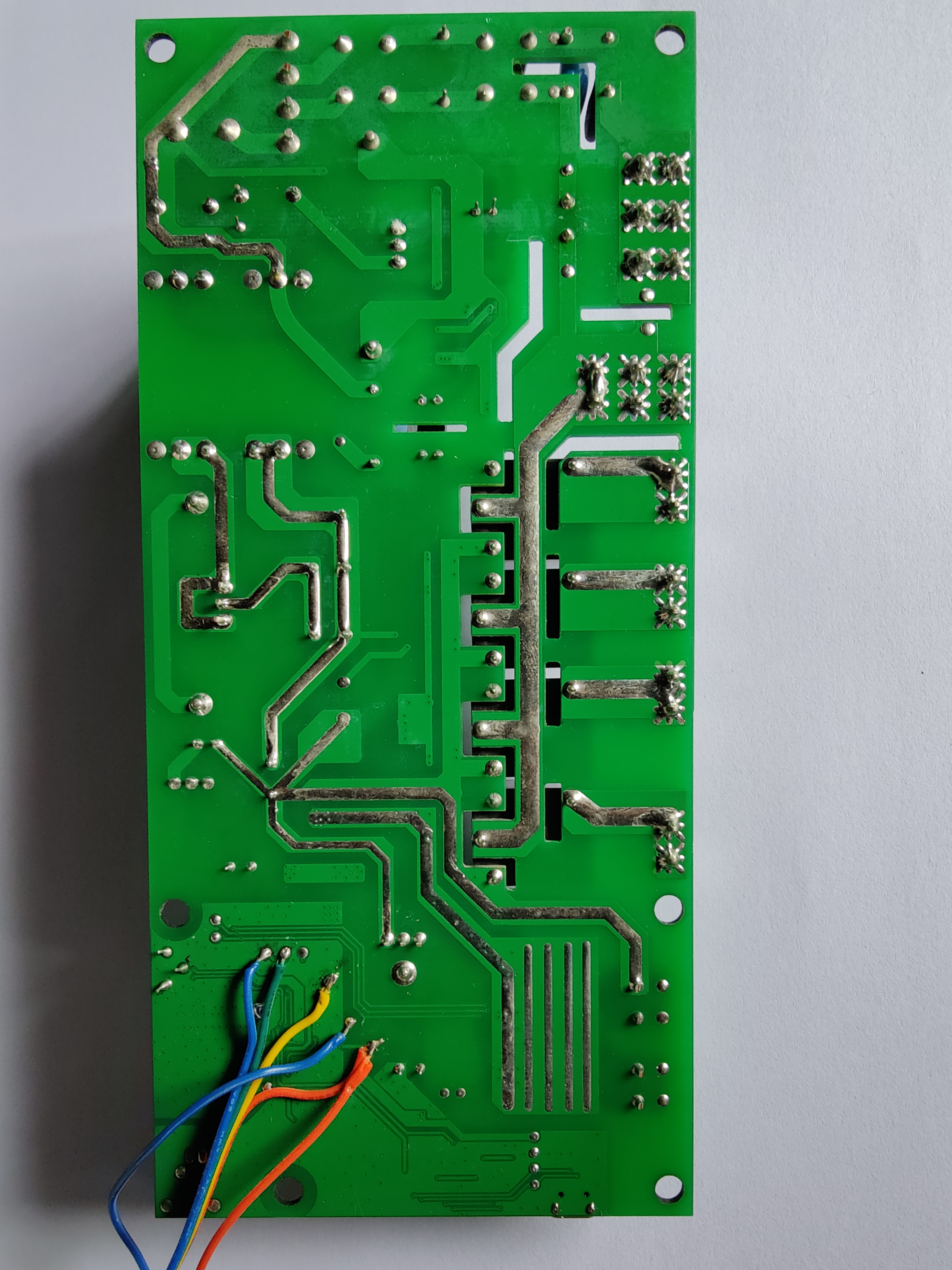

你目前位置: 首页 Products OEM&ODM Fireplace PCBA&Controller LCD Touch Screen Thermostat multi-color APP Control intelligent Fireplace PCB Main Control Board/PCBA/PCB main control circuit board/PCB Circuit Board (005)
Specification parameters :
LED 12V 1A Input voltage: 220-240V /50Hz
Output power: 750-1500W Bluetooth Range: within 30M
Operating temperature: -20℃ -- 60℃ Product Size: 185 * 85 * 32 mm
Product weight: 206(g) Horn specification: 4 ohms 5 watts
Touch screen control functions:
1.Timing control, can define any period of time within a week to open or close. You
can set up 5 regular groups at most one time.
2.Holiday mode
3.Thermostatic control function. It can set temperature,when room temperature
reach to a low temperature, the fireplace will automatically open the heating
function,meanwhile when room temperature higher than a certain temperature, the
fireplace automatically turn off the heating function.
4.Remote control your fireplace anywhere in the home,can check the state and data
of fireplace anywhere in the home, can open fireplace heating function when needs.
5.Adjust the flame size.
6.Two gears heating(750w and 1500w)
7.Camera color extraction . Point the camera at the color you want to get, select a
reference, such as a stool, curtains, etc., and then press the color long until the
led light in the fireplace becomes the color you want.
8.Colorful flame change mode. You can set one flame color in red, green and yellow,
also can set automatic change mode. The flame can automatically change
according to the external sound and music sound.
9.Can simulate 8 kinds of flame sounds.
10.Calendar function
